Application:

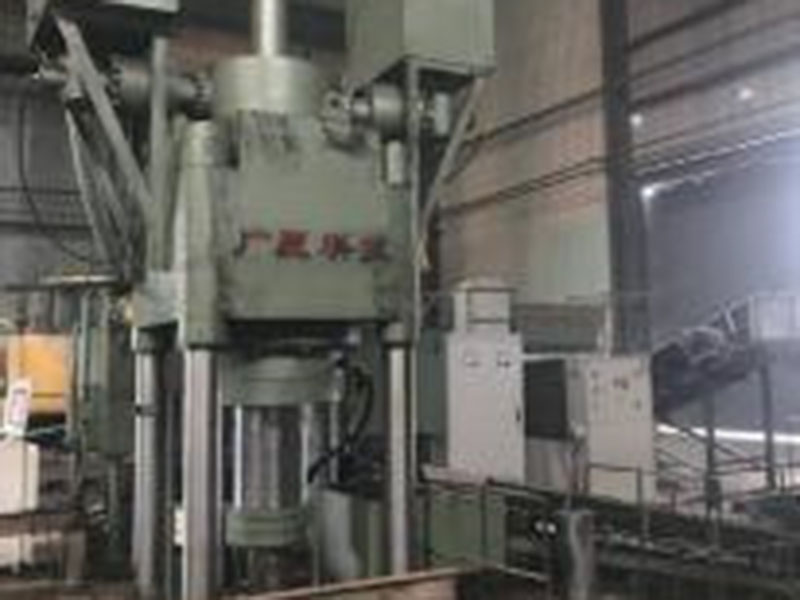

This function cold- presses powdered cast iron chips, high- grade nodular cast iron chips, alloy chips, steel chips, aluminum chips, copper chips, and other metal chips into cylin- drical cakes with a density of ≥ 5 .5-6 . 2t/ m3 (without any binder) . The daily output is 8-20 tons. This machine has a vertical structure with cast steel upper and lower beams, au- tomatic feeding, automatic block output, PLC control, equipped with a sequential adjustment display, circulating water cooling, and can be operated by a single person.
Features:
1 . Hydraulic drive, stable operation, no vibration, safe and reliable.
2 . Simple equipment foundation is required.
3 . PLC automatic control is adopted, users can choose manual or automatic operation.
Technical Data:
| Model | Cylinder pressure (KN) | Briquette diameter (mm) | C a p a c ity ( kg/ hr) | Motor ( kw ) | Remarks |
| Y83-250 | 250 | 110-120 | 800-900 | 22 | Vertical |
| Y83-360 | 360 | 120-140 | 900-1100 | 30 | Vertical |
| Y83-500 | 500 | 120-160 | 1500-3000 | 30 ×2 | Vertical |
| Y83-630 | 630 | 140-180 | 1600-3400 | 37 ×2 | Vertical |
| Y83-1000 | 1000 | 200-300 | 4000-6000 | 55 ×3 | Vertical |
