Application:
This machine is suitable for cold cutting of various cross- sectional shapes of scrap metal and cutting of various steel materials in steel mills. This machine is equipped with a fast device, which doubles the cutting speed compared to before updating.
Features:
1 . All adopt hydraulic drive, with reliable safety performance and convenient operation.
2 . Blade length: 700 mm, 800mm, 1000 mm, 1200 mm, 1500 mm, 1600mm; Shearing force ranges from 120 tons to 500 tons in seven levels , suitable for users of different scales and requirements.
3 . Installation does not require ground screws, and diesel engines can be used as power in places without power supply.
Technical Data:
| Model | Max shearing force (ton) |
Maximum length （mm） |
Maximum opening ( mm) |
Shearing frequency |
Mainly sheared material size | Power | Operating mode |
| Q43-1200 | 120 | 700 | 280 | 8-11 | 45*45Φ50 | 15 | Manual feeding, manual or automatic |
| Q43-1600 | 160 | 800 | 320 | 8-11 | 55*55Φ63 | 18.5 | |
| Q43-2000 | 200 | 1000 | 380 | 8-11 | 65*65Φ75 | 22 | |
| Q43-2500 | 250 | 1200 | 480 | 8-11 | 70*70Φ80 | 15 ×2 | |
| Q43-3150 | 315 | 1200 | 520 | 8-11 | 80*80Φ90 | 18.5 ×2 | |
| Q43-4000 | 400 | 1500 | 520 | 8-11 | 90*90Φ100 | 22 ×2 | |
| Q43-5000 | 500 | 1600 | 680 | 8-11 | 100* 100Φ110 | 30 ×2 |
 |
 |
 |

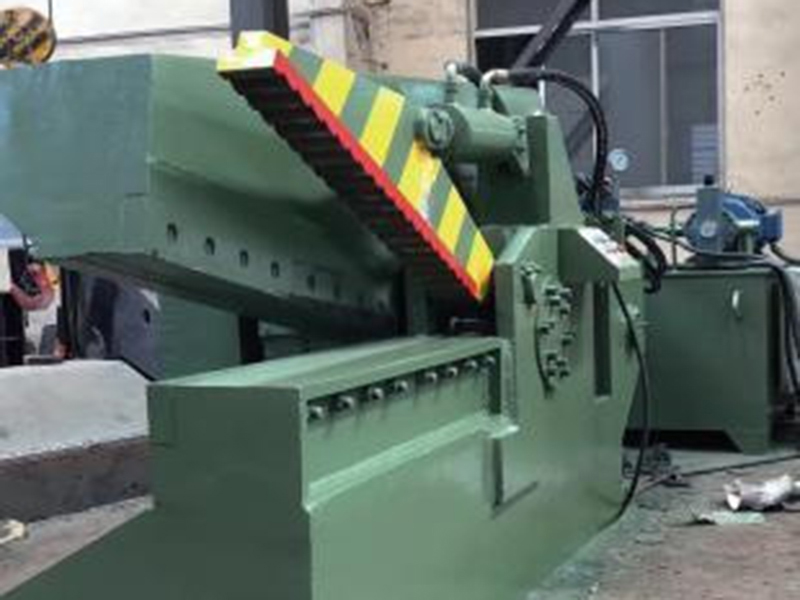

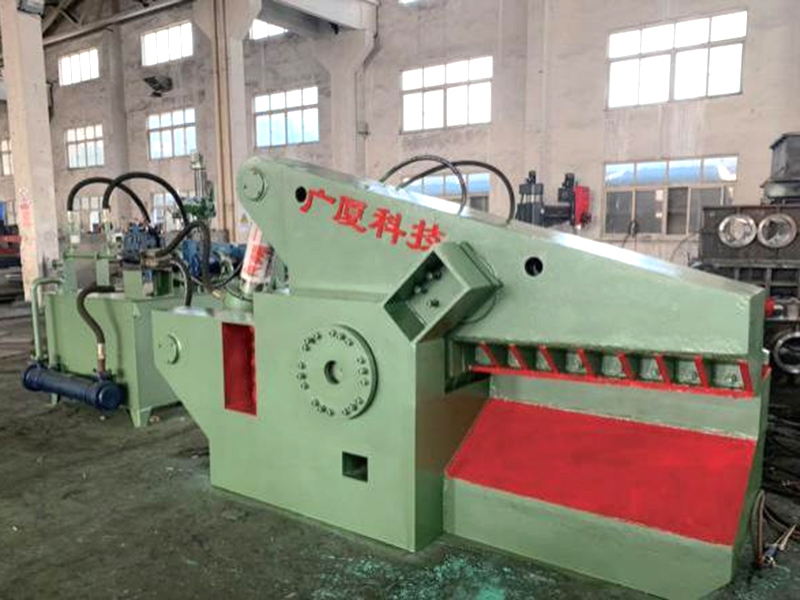

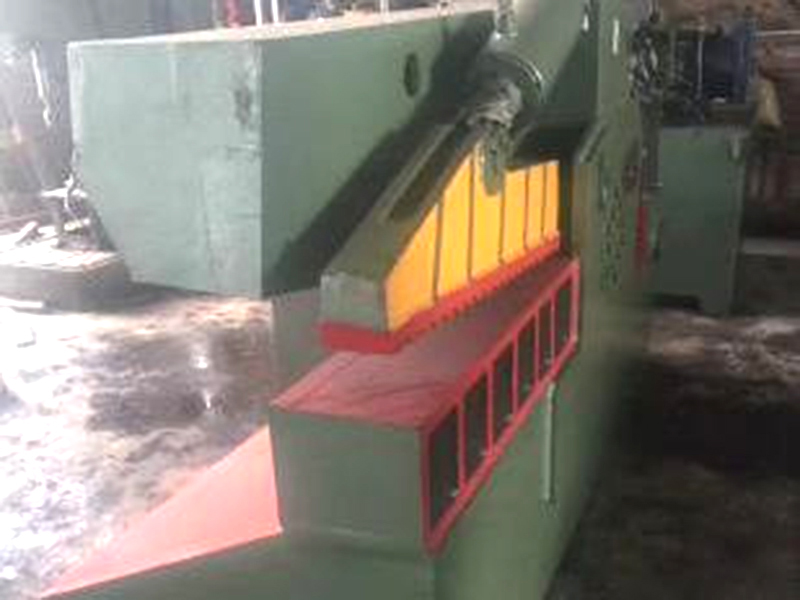

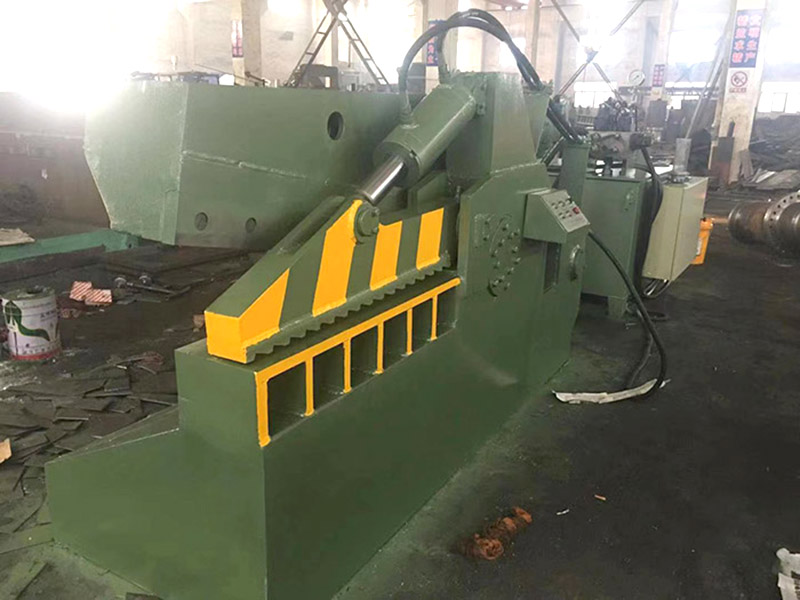

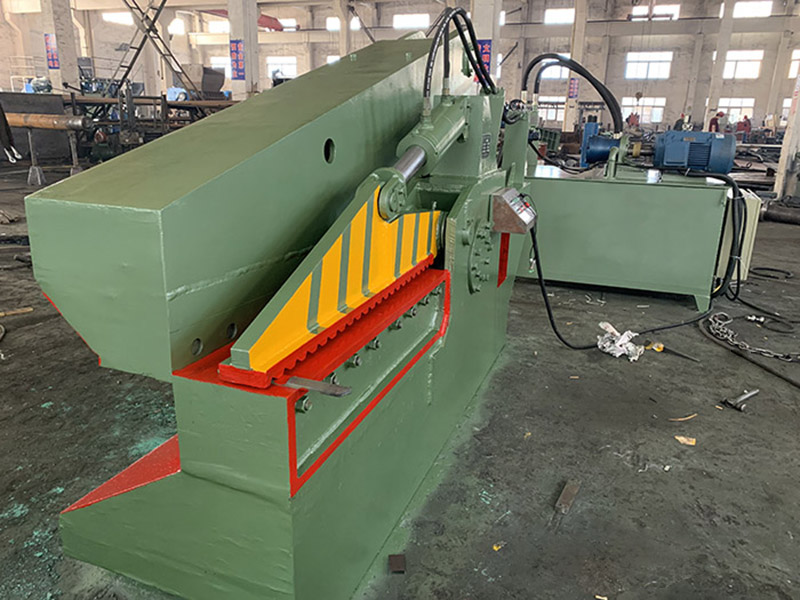

| Q43-250 Alligator shear | Q43-200 Alligator shear | Q43-315 Alligator shear |
