WS Series Container Shear
1 0 0 0 T series product diagram

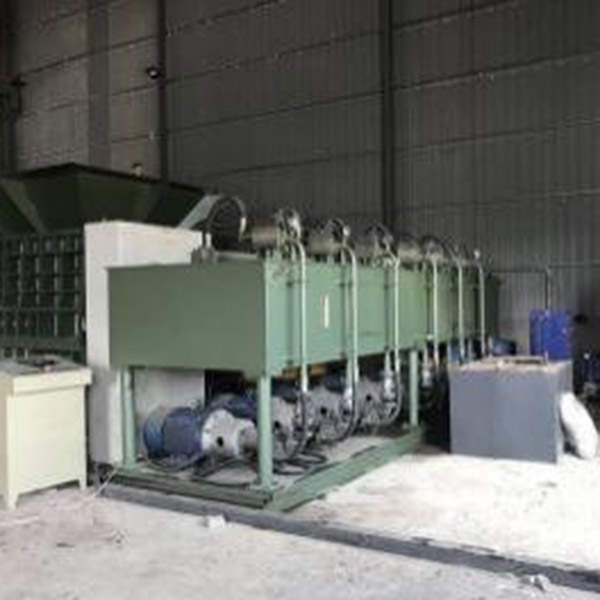

WS Series Container Shear1

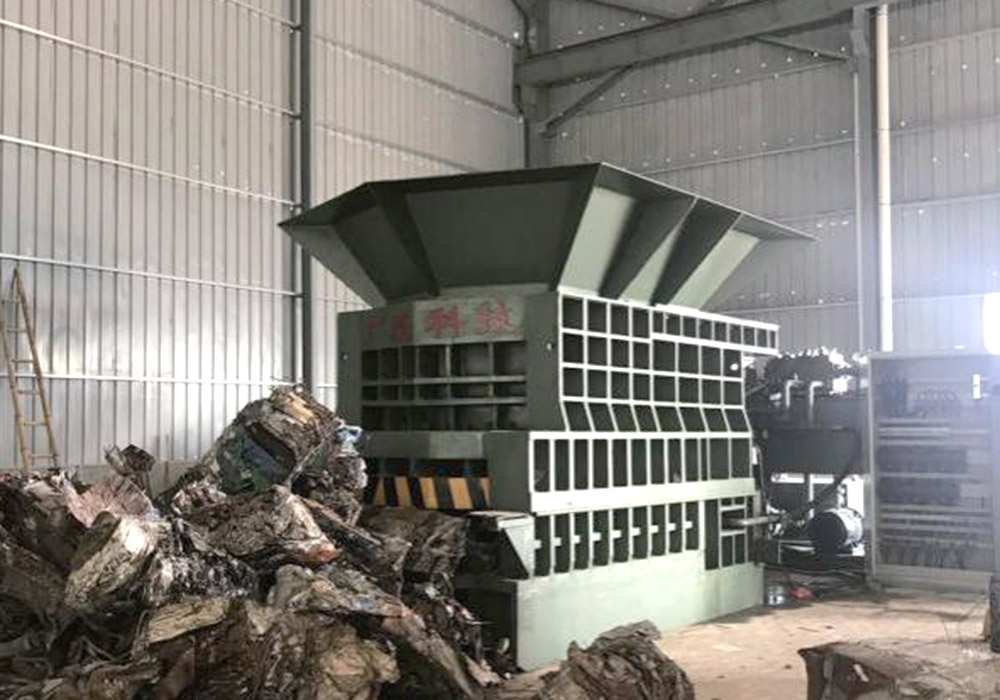

WS Series Container Shear2

Application:
Suitable for large- scale steel and non- ferrous metal enterprises, national circular economy parks, national urban mineral demonstration bases, waste steel processing and distribution centers ( bases) , scrap car dismantling and remanufacturing enterprises, as well as group companies with scattered or temporary material stacking yards for cutting and processing of waste metal and plastic products. Optional electric motors and diesel engines as power sources.

Features:

1.The overall structure of the machine allows for
quick transportation in various material stacking yards.
2.It can be equipped with remote control operation, ensuring high safety.
3.It has rapid pre- pressing and high cutting efficiency. 4.During operation, it is placed on hardened
ground without the need for excavation. Materials are
grabbed by a steel grabber or transported by a conveyor belt 5.It is mainly used for cutting thin materials, incl udi ng
aluminum profiles, copper- aluminum metal strips/
wires, thin boxes such as car bodies and hydraulic oil tanks, construction waste such as steel bars and paint buckets,
and plastic products such as PVC pipes/ belts.

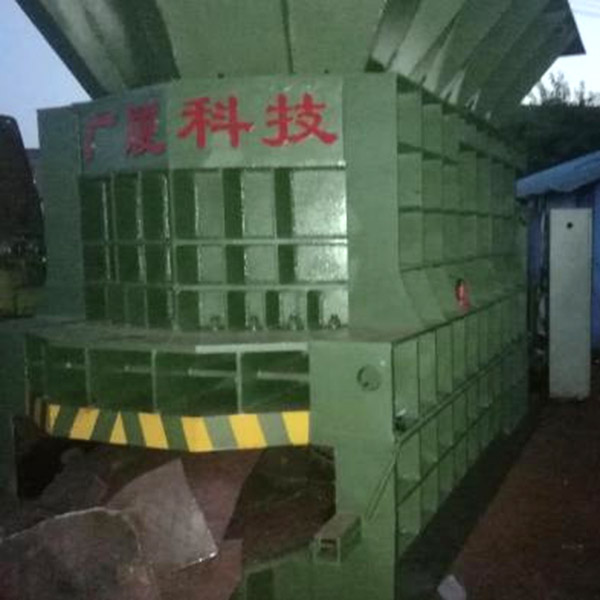

WS Series Container Shear3

Technical Data:

Model Max. cutting force ( Ton) Shearing length (mm) Main motor
power (kw)
Max shear size (mm) Feeding port size (mm)
WS -630 630 420 45 ×3 Square steel 100 × 100 Round steel Φ 105 1600 × 1400
WS -800 800 420 45 ×4 Square steel 110 × 110 Round steel Φ 145 1800 × 1600
WS -1000 1000 420 45 × 5 Square steel 12 0 × 120 Round Round steel Φ160 1800 × 1600
