Application:
1 . PLC control, button operation.

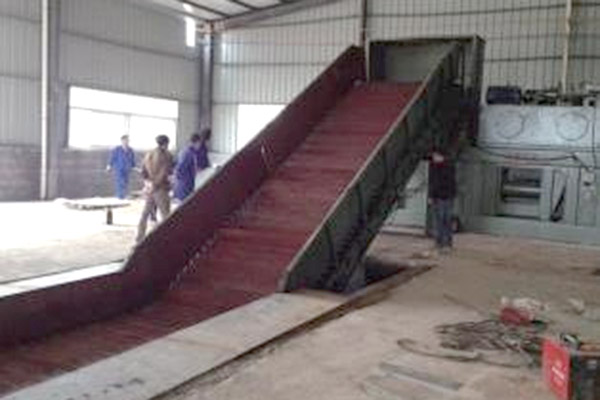

2 . Horizontal structure, belt feeding, manual bundling.
Features:
Suitable for packaging and manual strapping of waste paper ( cardboard boxes, OCC, newsprint, etc. ) , waste plastic ( PET bottles, turnover boxes, plastic film, etc. ) , straw and other loose materials.
Technical Data:
| Model | Master cylinder pressure ( ton) | Feeding port size
( LxWxH) |
Block size | Package weight - waste paper box ( kg) |
Motor (kW) | Conveyor belt width ( mm) |
| [ Left and right door type] | ||||||
| HPM125S | 125 | 2050 × 1100 | 1100 × 1250 | 820-1150 | 37+7.5 | 1600 |
| HPM160S | 160 | 2050 × 1120 | 1120 × 1300 | 900-1350 | 44+7.5 | 1600 |
| HPM250S | 250 | 2050 × 1120 | 1120 × 1300 | 1050-1500 | 60+7.5 | 1600 |
| HPM315S | 315 | 2050 × 1120 | 1120 × 1330 | 1100-1600 | 74+7.5 | 1600 |
